Example Threat Model with STRIDE - Mastering Security By Design

An example of a STRIDE-based threat analysis for the SkyLink Connected Aircraft Platform.

Document Information¶

Attribute	Value
Service Owner	SkyLink Platform Team
Data Classification	Confidential (PII, telemetry, credentials)
Highest Risk Impact	MAXIMUM
Document Version	1.0
Last Review Date	December 2025
Next Review Date	June 2026

Table of Contents¶

Document Information
Table of Contents
Service Description
Data Dictionary
- Data Flow Classification
Threat Actors
STRIDE Analysis
Risk Matrix
- Risk Calculation
- Current Risk Profile
Threat Scenarios
Recommendations Summary
- Implemented Controls
- Pending Controls
Gap Analysis
- Current State vs Target State
- Remediation Roadmap
Review History
Appendix A: Security Controls Matrix

Service Description¶

Overview¶

SkyLink is a connected aircraft services platform providing real-time telemetry ingestion, weather data, and contact synchronization for commercial aviation. The platform follows Security by Design principles with multi-layer authentication, defense in depth, and privacy by design.

Functional Decomposition¶

The service provides the following capabilities:

Telemetry Ingestion: Real-time reception of aircraft operational data (speed, altitude, fuel, GPS position)
Weather Services: Geolocation-based weather and air quality data using external APIs
Contact Synchronization: Google Contacts retrieval via OAuth 2.0 for crew communication

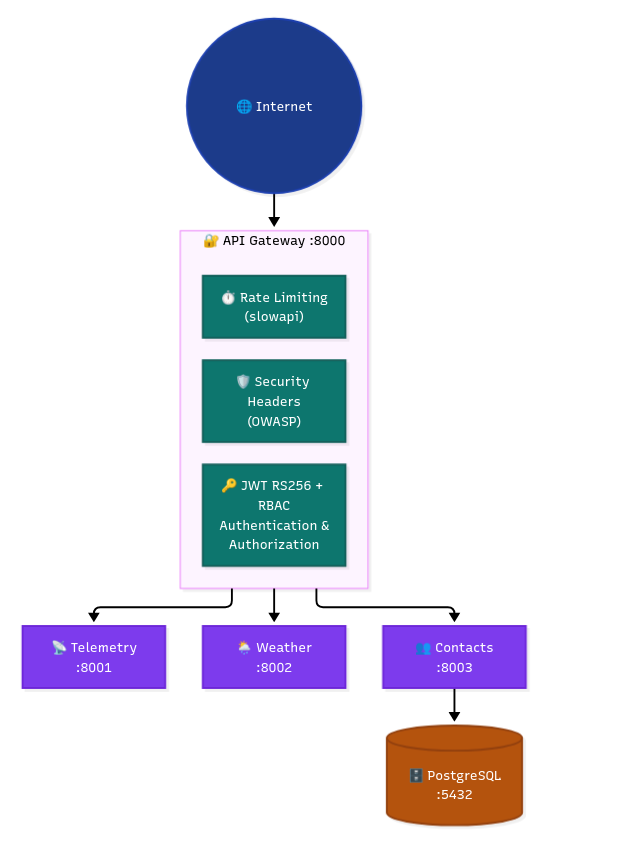

Technical Architecture¶

Component Responsibilities¶

Component	Responsibility	Security Controls
API Gateway	Authentication, authorization, routing, rate limiting	mTLS, JWT RS256, RBAC, OWASP headers
Telemetry Service	Aircraft data ingestion	Idempotency, input validation
Weather Service	External API proxy	Demo mode fallback
Contacts Service	OAuth flow, Google API	Token encryption (AES-256-GCM)
PostgreSQL	Data persistence	Network isolation, credentials

Data Dictionary¶

List of data stored or in transit within the service.

Data Type	Classification	Storage	Notes
Aircraft UUID	Internal	Memory/Transit	Technical identifier
Telemetry Data (speed, altitude, fuel, engine temp)	Confidential	Memory	Reveals flight patterns and aircraft state
GPS Position	Confidential (PII)	Memory	Sensitive location data - rounded to 4 decimals (~11m) to minimize precision
Google Contacts	Confidential (PII)	Transit only	Read-only via Google People API, not persisted
Google OAuth Tokens	Restricted	PostgreSQL	AES-256-GCM encrypted at rest
JWT Tokens	Restricted	Transit	RS256 signed, 15-minute expiry
mTLS Certificates	Restricted	Filesystem	X.509, CA-signed, stored securely
Logs	Restricted	Filesystem/STDOUT	No PII - only trace_id for correlation
Network Metadata (IP, User-Agent)	Internal	Memory	Pseudonymized if exported for analysis

Data Flow Classification¶

Flow	Encryption	Authentication	Authorization
Aircraft → Gateway	mTLS (TLS 1.2+)	X.509 certificate	JWT claims
Gateway → Services	Internal network	None (trusted)	N/A
Services → External APIs	HTTPS	API keys / OAuth	Scope-limited
Services → Database	Internal network	Credentials	Role-based

Threat Actors¶

External Threat Actors¶

Actor	Motivation	Capability	Target
Nation-State	Espionage, disruption	HIGH	Flight data, infrastructure
Cybercriminals	Financial gain	MEDIUM	Credentials, PII
Hacktivists	Ideology, publicity	LOW-MEDIUM	Service availability
Competitors	Industrial espionage	MEDIUM	Proprietary data

Internal Threat Actors¶

Actor	Motivation	Capability	Target
Malicious Insider	Financial, revenge	HIGH	All data, credentials
Compromised Account	Exploited by external	VARIES	Depends on privileges
Negligent Employee	None (accidental)	LOW	Misconfigurations

Supply Chain Threats¶

Vector	Risk	Mitigation
Compromised Dependencies	Backdoors, vulnerabilities	SCA (pip-audit), SBOM
Container Image Tampering	Malicious code injection	Image signing (Cosign)
CI/CD Pipeline Compromise	Unauthorized deployments	Protected branches, secrets management

STRIDE Analysis¶

Spoofing (Identity)¶

ID	Threat	Impact	Likelihood	Mitigation	Status
S1	Aircraft identity spoofing	MAXIMUM	Medium	mTLS with X.509 certificates, CN validation	✅
S2	User identity spoofing	HIGH	Medium	JWT RS256 + mTLS cross-validation (CN == sub)	✅
S3	Compromised Certificate Authority	MAXIMUM	Low	CA isolation, HSM storage (recommended)	⚠️
S4	Stolen aircraft private key	HIGH	Low	HSM storage on aircraft, certificate rotation	📝
S5	JWT token theft	HIGH	Medium	Short expiry (15 min), HTTPS only	✅

Symbol legend:

✅ Implemented
⚠️ Partial
📝 Documented

Tampering (Integrity)¶

ID	Threat	Impact	Likelihood	Mitigation	Status
T1	Telemetry data modification in transit	MAXIMUM	Medium	mTLS integrity, TLS 1.2+	✅
T2	JWT token modification	HIGH	Low	RS256 signature verification	✅
T3	Database tampering	HIGH	Low	Access controls, network isolation	✅
T4	Supply chain attack (malicious dependency)	MAXIMUM	Medium	SBOM, SCA, image signing, Gitleaks	✅
T5	Log tampering	MEDIUM	Low	Centralized logging (recommended)	⚠️
T6	Configuration tampering	HIGH	Low	Environment variables, protected branches	✅

Symbol legend:

✅ Implemented
⚠️ Partial

Repudiation (Non-Repudiation)¶

ID	Threat	Impact	Likelihood	Mitigation	Status
R1	Denied authentication attempts	MEDIUM	Medium	Audit logging	❌
R2	Denied data access	MEDIUM	Medium	Audit logging	❌
R3	Deleted or modified logs	HIGH	Low	Immutable log storage	❌
R4	Timestamp manipulation	MEDIUM	Low	Server-side timestamps	✅

Symbol legend:

✅ Implemented
❌ Not Implemented

Information Disclosure (Confidentiality)¶

ID	Threat	Impact	Likelihood	Mitigation	Status
I1	OAuth token leak (logs, CI, exposed variables)	MAXIMUM	Medium	AES-256-GCM encryption, no logging	✅
I2	PII in logs	HIGH	Medium	Structured logging, PII filtering	✅
I3	GPS precision leak (tracking)	HIGH	Medium	4-decimal rounding (~11m accuracy)	✅
I4	Verbose error messages	MEDIUM	Medium	Generic error responses	✅
I5	Secrets in repository	MAXIMUM	Low	Gitleaks scanning, .gitignore	✅
I6	Excessive OAuth scope	HIGH	Low	Minimal scope (contacts.readonly)	✅
I7	External API data leak (WeatherAPI)	MEDIUM	Low	Geohash/rounding for location	✅

Symbol legend:

✅ Implemented

Denial of Service (Availability)¶

ID	Threat	Impact	Likelihood	Mitigation	Status
D1	API flood / DDoS	HIGH	High	Rate limiting (60/min per identity)	✅
D2	Large payload attack	MEDIUM	Medium	64KB payload limit	✅
D3	Telemetry storm (fleet event flood)	MEDIUM	Medium	Idempotency, rate limiting	✅
D4	External service outage (Weather/Google)	MEDIUM	Medium	Demo mode fallback	✅
D5	Database exhaustion	MEDIUM	Low	Connection pooling, limits	⚠️
D6	CI/CD pipeline failure	HIGH	Medium	Rollback capability	⚠️

Symbol legend:

✅ Implemented
⚠️ Partial

Elevation of Privilege (Authorization)¶

ID	Threat	Impact	Likelihood	Mitigation	Status
E1	JWT claim manipulation	HIGH	Low	RS256 signature verification	✅
E2	Cross-aircraft data access	HIGH	Medium	JWT subject validation, aircraft_id binding	✅
E3	Container escape	MAXIMUM	Low	Non-root containers (UID 1000)	✅
E4	RBAC bypass	HIGH	Medium	N/A - RBAC not implemented	❌
E5	Service-to-service impersonation	MEDIUM	Low	Internal network isolation	✅

Symbol legend:

✅ Implemented
❌ Not Implemented

Risk Matrix¶

Risk Calculation¶

Risk = Impact × Likelihood

	Low Impact	Medium	High	Maximum
Likely	MEDIUM	HIGH	CRITICAL	CRITICAL
Possible	LOW	MEDIUM	HIGH	CRITICAL
Unlikely	LOW	LOW	MEDIUM	HIGH
Rare	ACCEPT	LOW	LOW	MEDIUM

Current Risk Profile¶

Risk Level	Count	Examples
CRITICAL	0	-
HIGH	3	Audit logging gaps, RBAC missing, CA compromise
MEDIUM	5	Log tampering, external service outage
LOW	8	Various mitigated threats
ACCEPTED	2	Rare/low impact scenarios

Threat Scenarios¶

Detailed threat scenarios with business impact analysis.

Scenario 1: Data Leak via OAuth Token Exposure¶

Attribute	Value
Impact	MAXIMUM (Reputation), MEDIUM (Productivity), € (Financial)
CIA	Confidentiality
Attack Vector	Tokens exposed in CI logs, GitLab variables, or verbose logging
Consequence	Extraction of user contacts, potential GDPR violation

Mitigations Implemented:

AES-256-GCM encryption for stored tokens
No token logging (structured logging without PII)
GitLab/GitHub secrets management
Gitleaks scanning in CI

Scenario 2: Aircraft Spoofing via mTLS Bypass¶

Attribute	Value
Impact	HIGH (Reputation), HIGH (Productivity), €€ (Financial)
CIA	Integrity
Attack Vector	Weak mTLS validation, compromised CA, or stolen private key
Consequence	Falsified telemetry injection, erroneous alerts, costly investigations

Mitigations Implemented:

mTLS with X.509 certificates
CN ↔ JWT subject cross-validation
TLS 1.2+ with strong cipher suites
Certificate generation scripts for proper PKI

Scenario 3: Supply Chain Attack¶

Attribute	Value
Impact	MAXIMUM (Reputation), MAXIMUM (Productivity), €€€ (Financial)
CIA	Integrity
Attack Vector	Compromised PyPI dependency, malicious container image
Consequence	Backdoor in production, potential remote aircraft impact

Mitigations Implemented:

pip-audit for dependency scanning
Trivy for container scanning
Cosign for image signing
SBOM generation (CycloneDX)
Gitleaks for secret detection

Scenario 4: DDoS / API Flood¶

Attribute	Value
Impact	HIGH (Reputation), HIGH (Productivity), € (Financial)
CIA	Availability
Attack Vector	Unprotected gateway, missing rate limits
Consequence	Service unavailability during flight operations

Mitigations Implemented:

Rate limiting: 60 requests/minute per aircraft_id
Global rate limit: 10 requests/second
Payload size limit: 64KB
Prometheus metrics for monitoring

Scenario 5: Replay Attack on Telemetry¶

Attribute	Value
Impact	MEDIUM (Reputation), LOW (Productivity), € (Financial)
CIA	Integrity
Attack Vector	Replay of captured telemetry events
Consequence	Duplicate events, time series pollution

Mitigations Implemented:

Idempotency via unique (aircraft_id, event_id) constraint
Response codes: 201 (new), 200 (duplicate), 409 (conflict)
Server-side timestamps

Recommendations Summary¶

Implemented Controls¶

Priority	Recommendation	Status
MAXIMUM	mTLS for aircraft authentication	✅
MAXIMUM	OAuth with least privilege (contacts.readonly)	✅
HIGH	Data minimization (GPS rounding, no contact persistence)	✅
HIGH	JWT RS256 + rate limiting	✅
HIGH	Logs without PII, tracing, metrics	✅
HIGH	Supply chain security (SBOM, SCA, image signing)	✅

Symbol legend:

✅ Implemented

Pending Controls¶

Priority	Recommendation	Status	Planned
MAXIMUM	Secrets in KMS/Vault	⚠️	Phase 4
HIGH	Audit logging	❌	Phase 3
HIGH	Security monitoring & alerting	❌	Phase 3
MEDIUM	RBAC authorization	❌	Phase 4
MEDIUM	Key rotation automation	❌	Phase 3

Symbol legend:

⚠️ Partial
❌ Not Implemented

Gap Analysis¶

Current State vs Target State¶

Control Area	Current	Target	Gap
Authentication	mTLS + JWT RS256	Same	None
Authorization	Identity-based only	RBAC	Missing roles/permissions
Audit Logging	None	Full audit trail	Not implemented
Monitoring	Basic Prometheus	Grafana dashboards + alerts	Dashboards missing
Key Management	Manual	Automated rotation	Scripts needed
Secrets Management	Environment variables	KMS/Vault	Integration needed
Incident Response	None	Documented playbook	Not documented

Remediation Roadmap¶

Phase	Focus	Timeline
Phase 2	Threat Model + Security Architecture	Current
Phase 3	Monitoring, Key Management, Audit Logging	Next
Phase 4	RBAC, Security Tests, Kubernetes	Following
Phase 5	Compliance, Vault Integration	Future

Review History¶

Date	Version	Reviewer	Changes
December 2025	1.0	Initial	Initial threat model based on STRIDE analysis

Appendix A: Security Controls Matrix¶

Control	STRIDE Coverage	Implementation
mTLS	S, T, I	See config file (give a link as evidence)
JWT RS256	S, T, E	See config file (give a link as evidence)
Rate Limiting	D	See config file or code (give a link as evidence)`
Input Validation	T, E	See code file and design (give link as evidence)
Security Headers	I	See code file and design (give link as evidence)
Token Encryption	I	See code file and design (give link as evidence)
GPS Rounding	I	See code file and design (give link as evidence)
Idempotency	T, R	Telemetry service
Container Security	E	Dockerfile (non-root)
Supply Chain	T	CI/CD pipeline - see config in repo
