Example: SkyLink Security Architecture
Data Flow Diagrams and Security Controls for the SkyLink Connected Aircraft Platform
Document Information¶
| Attribute | Value |
|---|---|
| Document Owner | SkyLink Platform Team |
| Classification | Internal |
| Document Version | 1.0 |
| Last Review Date | December 2025 |
| Next Review Date | June 2026 |
| Related Documents | tbd |
Overview¶
Purpose¶
This document describes the security architecture of the SkyLink platform using Data Flow Diagrams (DFD) to illustrate:
How data moves through the system
Where trust boundaries exist
What security controls are applied at each boundary
How data is classified and protected
Scope¶
This architecture covers:
API Gateway (authentication, routing, rate limiting)
Telemetry Service (aircraft data ingestion)
Weather Service (external API integration)
Contacts Service (Google OAuth integration)
PostgreSQL Database (persistent storage)
External integrations (WeatherAPI, Google People API)
Audience¶
Security Engineers (threat modeling, penetration testing)
Developers (secure implementation guidance)
Auditors (compliance verification)
Operations (deployment and monitoring)
System Context (Level 0)¶

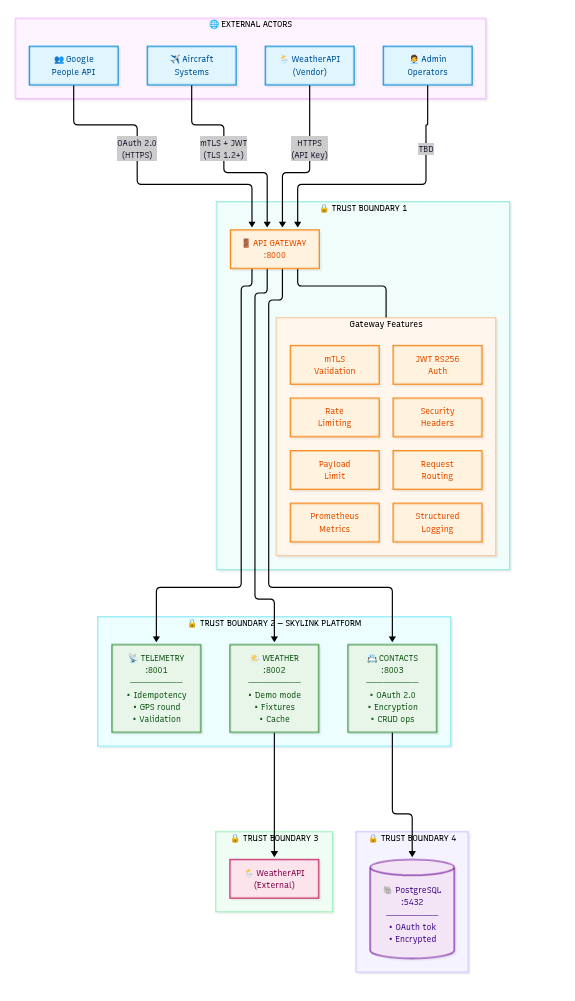

Context Diagram¶
┌─────────────────────────────────────────────────────────────────────────┐
│ EXTERNAL ACTORS │
│ │
│ ┌──────────────┐ ┌──────────────┐ ┌──────────────┐ ┌──────────────┐ │
│ │ Aircraft │ │ WeatherAPI │ │ Google │ │ Admin │ │
│ │ Systems │ │ (Vendor) │ │ People API │ │ Operators │ │
│ └──────┬───────┘ └──────┬───────┘ └──────┬───────┘ └──────┬───────┘ │
│ │ │ │ │ │
└─────────┼─────────────────┼─────────────────┼─────────────────┼──────────┘
│ │ │ │
│ mTLS + JWT │ HTTPS │ OAuth 2.0 │ TBD
│ (TLS 1.2+) │ (API Key) │ (HTTPS) │
│ │ │ │
▼ ▼ ▼ ▼
┌─────────────────────────────────────────────────────────────────────────┐
│ │
│ ══════════════════════ TRUST BOUNDARY 1 ══════════════════════════════ │
│ │
│ ┌───────────────────────────────────────────────────────────────────┐ │
│ │ API GATEWAY (:8000) │ │
│ │ │ │
│ │ ┌────────────┐ ┌────────────┐ ┌────────────┐ ┌────────────────┐ │ │
│ │ │ mTLS │ │ JWT RS256 │ │ Rate │ │ Security │ │ │
│ │ │ Validation │ │ Auth │ │ Limiting │ │ Headers │ │ │
│ │ └────────────┘ └────────────┘ └────────────┘ └────────────────┘ │ │
│ │ ┌────────────┐ ┌────────────┐ ┌────────────┐ ┌────────────────┐ │ │
│ │ │ Payload │ │ Request │ │ Prometheus │ │ Structured │ │ │
│ │ │ Limit │ │ Routing │ │ Metrics │ │ Logging │ │ │
│ │ └────────────┘ └────────────┘ └────────────┘ └────────────────┘ │ │
│ └───────────────────────────────────────────────────────────────────┘ │
│ │ │
│ ══════════════════════ TRUST BOUNDARY 2 ══════════════════════════════ │
│ │ │
│ ┌──────────────────────────┼──────────────────────────┐ │
│ │ │ │ │
│ ▼ ▼ ▼ │
│ ┌─────────────┐ ┌─────────────┐ ┌─────────────┐ │
│ │ TELEMETRY │ │ WEATHER │ │ CONTACTS │ │
│ │ :8001 │ │ :8002 │ │ :8003 │ │
│ ├─────────────┤ ├─────────────┤ ├─────────────┤ │
│ │ • Idempotency│ │ • Demo mode │ │ • OAuth 2.0 │ │
│ │ • GPS round │ │ • Fixtures │ │ • Encryption│ │
│ │ • Validation │ │ • Cache │ │ • CRUD ops │ │
│ └─────────────┘ └──────┬──────┘ └──────┬──────┘ │
│ │ │ │
│ ═══════════════════ TRUST BOUNDARY 3 ═══════════════════════│══════ │
│ │ │ │
│ ▼ │ │
│ ┌─────────────┐ │ │
│ │ WeatherAPI │ │ │
│ │ (External) │ │ │
│ └─────────────┘ │ │
│ │ │
│ ═══════════════════ TRUST BOUNDARY 4 ═══════════════════════│══════ │
│ │ │
│ ▼ │
│ ┌─────────────┐ │
│ │ PostgreSQL │ │
│ │ :5432 │ │
│ ├─────────────┤ │
│ │ • OAuth tok │ │
│ │ • Encrypted │ │
│ └─────────────┘ │
│ │
│ SKYLINK PLATFORM │
└─────────────────────────────────────────────────────────────────────────┘External Actors¶
| Actor | Description | Authentication | Data Exchanged |
|---|---|---|---|
| Aircraft Systems | Onboard avionics and telemetry systems | mTLS + JWT RS256 | Telemetry data, weather requests |
| WeatherAPI | Third-party weather data provider | API Key (outbound) | Weather conditions, air quality |
| Google People API | Google contact synchronization | OAuth 2.0 (outbound) | Contact names, emails |
| Admin Operators | Platform administrators | TBD (future) | Configuration, monitoring |
Trust Boundaries¶
Boundary Definitions¶
| ID | Boundary | From | To | Risk Level |
|---|---|---|---|---|
| TB1 | Internet → Gateway | Untrusted (Internet) | DMZ (Gateway) | CRITICAL |
| TB2 | Gateway → Services | DMZ | Internal Services | MEDIUM |
| TB3 | Services → External APIs | Internal | External (Vendors) | HIGH |
| TB4 | Services → Database | Internal | Data Layer | HIGH |
Security Controls per Boundary¶
TB1: Internet → Gateway (CRITICAL)¶
┌─────────────────────────────────────────────────────────────┐
│ TRUST BOUNDARY 1 │
│ Internet → API Gateway │
├─────────────────────────────────────────────────────────────┤
│ │
│ THREATS CONTROLS │
│ ───────── ──────── │
│ • Spoofing ──► mTLS (X.509 client certs) │
│ • Man-in-Middle ──► TLS 1.2+ with strong ciphers │
│ • Replay attacks ──► JWT expiry (15 min) │
│ • DDoS/Flooding ──► Rate limiting (60 req/min) │
│ • Injection ──► Pydantic validation (extra=forbid)│
│ • Info disclosure ──► Security headers (OWASP) │
│ • Large payloads ──► 64KB request limit │
│ │
│ AUTHENTICATION FLOW: │
│ 1. TLS handshake (mutual authentication) │
│ 2. Client certificate validation (CA-signed) │
│ 3. CN extraction from certificate │
│ 4. JWT token issuance (sub = CN) │
│ 5. Cross-validation on subsequent requests (CN == sub) │
│ │
└─────────────────────────────────────────────────────────────┘TB2: Gateway → Services (MEDIUM)¶
┌─────────────────────────────────────────────────────────────┐
│ TRUST BOUNDARY 2 │
│ Gateway → Internal Services │
├─────────────────────────────────────────────────────────────┤
│ │
│ ASSUMPTION: Gateway has validated all requests │
│ │
│ CONTROLS: │
│ • Docker bridge network isolation │
│ • Services not exposed to Internet │
│ • Internal DNS resolution only │
│ • Request forwarding via httpx (async) │
│ │
│ DATA FLOW: │
│ Gateway ──[HTTP/JSON]──► Telemetry/Weather/Contacts │
│ │
│ NOTE: No authentication between internal services │
│ (trusted internal network model) │
│ │
└─────────────────────────────────────────────────────────────┘TB3: Services → External APIs (HIGH)¶
┌─────────────────────────────────────────────────────────────┐
│ TRUST BOUNDARY 3 │
│ Internal → External APIs │
├─────────────────────────────────────────────────────────────┤
│ │
│ OUTBOUND CONNECTIONS: │
│ │
│ Weather Service ──[HTTPS]──► WeatherAPI │
│ • API key in request header │
│ • Geohash/coordinates (no raw GPS) │
│ • Demo mode fallback (fixtures) │
│ │
│ Contacts Service ──[HTTPS]──► Google People API │
│ • OAuth 2.0 bearer token │
│ • Minimal scope (contacts.readonly) │
│ • Token refresh handling │
│ │
│ CONTROLS: │
│ • HTTPS enforced (TLS 1.2+) │
│ • API keys not logged │
│ • Response validation │
│ • Timeout configuration │
│ │
└─────────────────────────────────────────────────────────────┘TB4: Services → Database (HIGH)¶
┌─────────────────────────────────────────────────────────────┐
│ TRUST BOUNDARY 4 │
│ Services → PostgreSQL │
├─────────────────────────────────────────────────────────────┤
│ │
│ CONNECTION: │
│ Contacts Service ──[TCP:5432]──► PostgreSQL │
│ │
│ CONTROLS: │
│ • Network isolation (Docker bridge) │
│ • Credential-based authentication │
│ • Connection pooling (SQLAlchemy) │
│ • Parameterized queries (no SQL injection) │
│ │
│ DATA STORED: │
│ • OAuth tokens (AES-256-GCM encrypted) │
│ • User identifiers │
│ • Token expiration metadata │
│ │
│ DATA PROTECTION: │
│ • Encryption at rest (application-level) │
│ • No plaintext secrets in database │
│ │
└─────────────────────────────────────────────────────────────┘Data Flow Diagrams (Level 1)¶

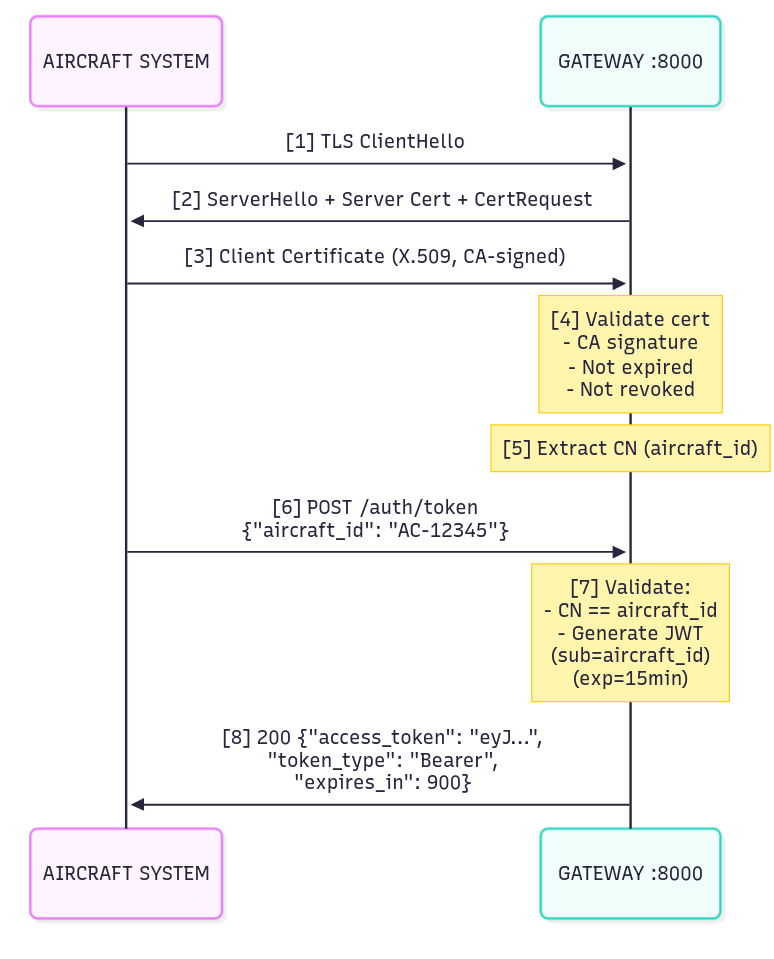

Flow 1: Aircraft Authentication¶
┌──────────────┐ ┌──────────────┐
│ AIRCRAFT │ │ GATEWAY │
│ SYSTEM │ │ :8000 │
└──────┬───────┘ └──────┬───────┘
│ │
│ ══[1] TLS ClientHello ════════════════════►│
│ │
│ ◄═══════════════════════ [2] ServerHello ══│
│ + Server Cert │
│ + CertRequest │
│ │
│ ══[3] Client Certificate ═════════════════►│
│ (X.509, CA-signed) │
│ │──┐
│ │ │ [4] Validate cert
│ │ │ - CA signature
│ │ │ - Not expired
│ │◄─┘ - Not revoked
│ │
│ │──┐
│ │ │ [5] Extract CN
│ │◄─┘ (aircraft_id)
│ │
│ ══[6] POST /auth/token ═══════════════════►│
│ {"aircraft_id": "AC-12345"} │
│ │──┐
│ │ │ [7] Validate:
│ │ │ - CN == aircraft_id
│ │ │ - Generate JWT
│ │ │ (sub=aircraft_id)
│ │◄─┘ (exp=15min)
│ │
│ ◄══════════════════════════════ [8] 200 ═══│
│ {"access_token": "eyJ...", │
│ "token_type": "Bearer", │
│ "expires_in": 900} │
│ │
▼ ▼Security Controls Applied:
mTLS handshake (mutual authentication)
Certificate validation (CA-signed, not expired)
CN extraction and binding
JWT RS256 signing (2048-bit RSA)
Short token expiry (15 minutes)

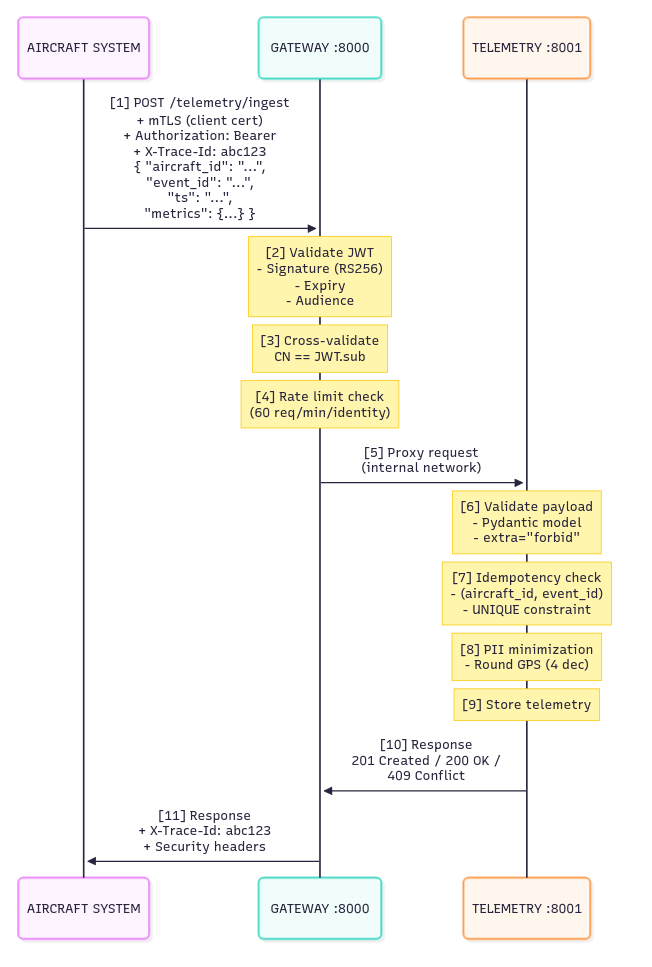

Flow 2: Telemetry Ingestion¶
┌──────────────┐ ┌──────────────┐ ┌──────────────┐
│ AIRCRAFT │ │ GATEWAY │ │ TELEMETRY │
│ SYSTEM │ │ :8000 │ │ :8001 │
└──────┬───────┘ └──────┬───────┘ └──────┬───────┘
│ │ │
│ ═[1] POST /telemetry/ingest═► │
│ + mTLS (client cert) │ │
│ + Authorization: Bearer │ │
│ + X-Trace-Id: abc123 │ │
│ { │ │
│ "aircraft_id": "...", │ │
│ "event_id": "...", │ │
│ "ts": "...", │ │
│ "metrics": {...} │ │
│ } │ │
│ │──┐ │
│ │ │ [2] Validate JWT │
│ │ │ - Signature (RS256) │
│ │ │ - Expiry │
│ │ │ - Audience │
│ │◄─┘ │
│ │──┐ │
│ │ │ [3] Cross-validate │
│ │ │ CN == JWT.sub │
│ │◄─┘ │
│ │──┐ │
│ │ │ [4] Rate limit check │
│ │ │ (60 req/min/identity)│
│ │◄─┘ │
│ │ │
│ │ ════[5] Proxy request══════►│
│ │ (internal network) │
│ │ │──┐
│ │ │ │ [6] Validate payload
│ │ │ │ - Pydantic model
│ │ │ │ - extra="forbid"
│ │ │◄─┘
│ │ │──┐
│ │ │ │ [7] Idempotency check
│ │ │ │ - (aircraft_id, event_id)
│ │ │ │ - UNIQUE constraint
│ │ │◄─┘
│ │ │──┐
│ │ │ │ [8] PII minimization
│ │ │ │ - Round GPS (4 dec)
│ │ │◄─┘
│ │ │──┐
│ │ │ │ [9] Store telemetry
│ │ │◄─┘
│ │ │
│ │ ◄════════[10] Response══════│
│ │ 201 Created / 200 OK / │
│ │ 409 Conflict │
│ │ │
│ ◄════════════[11] Response══│ │
│ + X-Trace-Id: abc123 │ │
│ + Security headers │ │
│ │ │
▼ ▼ ▼HTTP Response Codes:
| Code | Meaning | Scenario |
|---|---|---|
| 201 | Created | New event stored |
| 200 | OK | Duplicate event (idempotent) |
| 409 | Conflict | Same event_id, different payload |
| 400 | Bad Request | Validation error |
| 401 | Unauthorized | Invalid/expired JWT |
| 403 | Forbidden | CN ≠ JWT.sub |
| 429 | Too Many Requests | Rate limit exceeded |

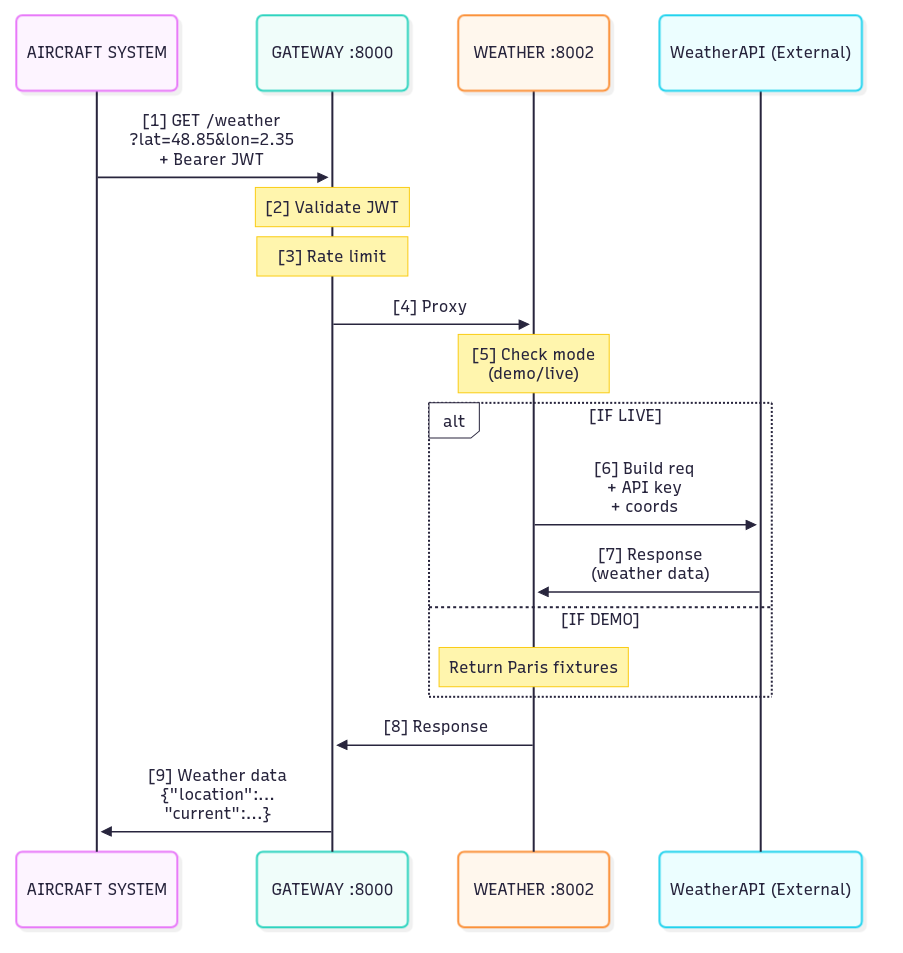

Flow 3: Weather Query¶
┌──────────────┐ ┌──────────────┐ ┌──────────────┐ ┌──────────────┐
│ AIRCRAFT │ │ GATEWAY │ │ WEATHER │ │ WeatherAPI │
│ SYSTEM │ │ :8000 │ │ :8002 │ │ (External) │
└──────┬───────┘ └──────┬───────┘ └──────┬───────┘ └──────┬───────┘
│ │ │ │
│ ═[1] GET /weather══►│ │ │
│ ?lat=48.85 │ │ │
│ &lon=2.35 │ │ │
│ + Bearer JWT │ │ │
│ │──┐ │ │
│ │ │ [2] Validate JWT │ │
│ │◄─┘ │ │
│ │──┐ │ │
│ │ │ [3] Rate limit │ │
│ │◄─┘ │ │
│ │ │ │
│ │ ══[4] Proxy════════►│ │
│ │ │ │
│ │ │──┐ │
│ │ │ │ [5] Check mode │
│ │ │ │ (demo/live) │
│ │ │◄─┘ │
│ │ │ │
│ │ │ ┌─── IF LIVE ───┐│
│ │ │ ══►│[6] Build req ││
│ │ │ │ + API key ││
│ │ │ │ + coords │├──►
│ │ │ └───────────────┘│
│ │ │ │
│ │ │ ◄═══[7] Response════│
│ │ │ (weather data) │
│ │ │ │
│ │ │ ┌─ IF DEMO ─────┐│
│ │ │ │ Return Paris ││
│ │ │ │ fixtures ││
│ │ │ └───────────────┘│
│ │ │ │
│ │ ◄══[8] Response═════│ │
│ │ │ │
│ ◄══[9] Weather data═│ │ │
│ {"location":... │ │ │
│ "current":...} │ │ │
│ │ │ │
▼ ▼ ▼ ▼Data Protection:
GPS coordinates passed as query parameters (not logged)
API key never exposed to clients
Demo mode prevents external API calls during testing

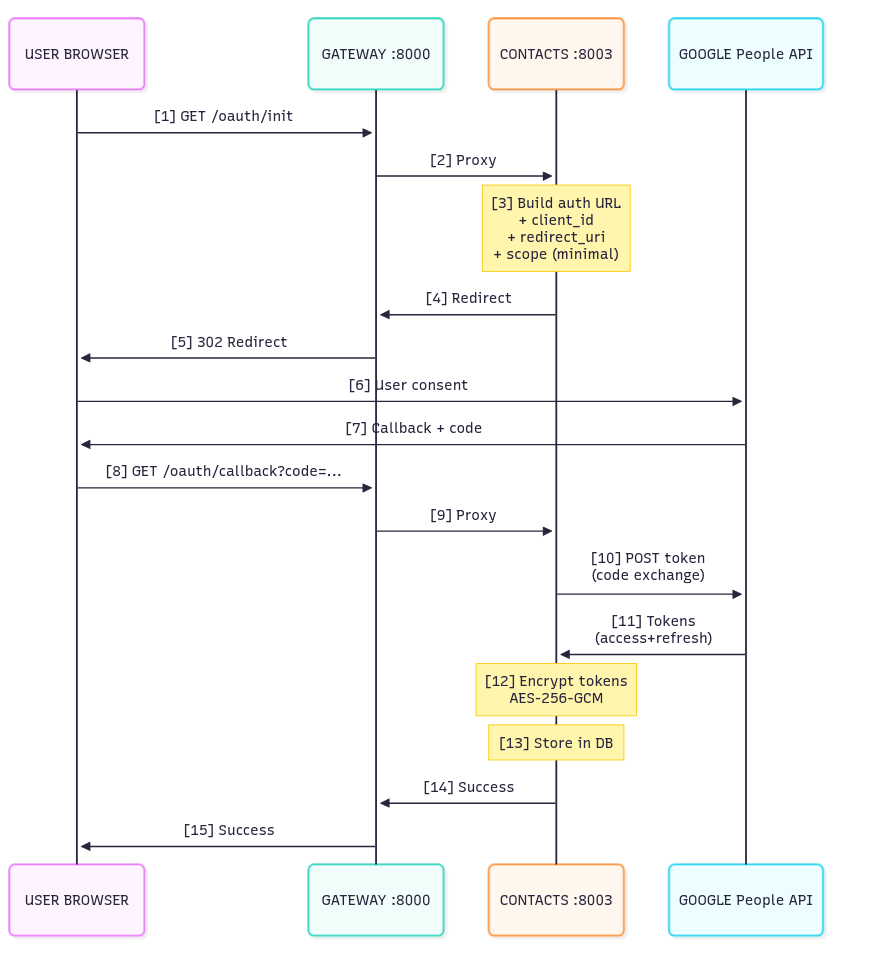

Flow 4: Contacts OAuth¶
┌──────────────┐ ┌──────────────┐ ┌──────────────┐ ┌──────────────┐
│ USER │ │ GATEWAY │ │ CONTACTS │ │ GOOGLE │
│ BROWSER │ │ :8000 │ │ :8003 │ │ People API │
└──────┬───────┘ └──────┬───────┘ └──────┬───────┘ └──────┬───────┘
│ │ │ │
│ ═[1] GET /oauth/init═► │ │
│ │ ══[2] Proxy═════►│ │
│ │ │──┐ │
│ │ │ │ [3] Build auth URL
│ │ │ │ + client_id
│ │ │ │ + redirect_uri
│ │ │ │ + scope (minimal)
│ │ │◄─┘ │
│ │ ◄═[4] Redirect══│ │
│ ◄═[5] 302 Redirect═│ │ │
│ │ │ │
│ ════════════════════[6] User consent════════════════════►
│ │ │ │
│ ◄═══════════════════[7] Callback + code═════════════════│
│ │ │ │
│ ═[8] GET /oauth/callback?code=...═►│ │
│ │ ══[9] Proxy═════►│ │
│ │ │ ═[10] POST token═►│
│ │ │ (code exchange)│
│ │ │ ◄═[11] Tokens═════│
│ │ │ (access+refresh)
│ │ │──┐ │
│ │ │ │ [12] Encrypt tokens
│ │ │ │ AES-256-GCM
│ │ │◄─┘ │
│ │ │──┐ │
│ │ │ │ [13] Store in DB
│ │ │◄─┘ │
│ │ ◄═[14] Success══│ │
│ ◄═[15] Success═══│ │ │
│ │ │ │
▼ ▼ ▼ ▼OAuth Security:
Minimal scope:
contacts.readonlyState parameter for CSRF protection
Tokens encrypted before storage (AES-256-GCM)
Tokens never logged
Security Controls by Layer¶
Control Matrix¶
| Layer | Control | Implementation | File | Status |
|---|---|---|---|---|
| Transport | TLS 1.2+ | mTLS with strong ciphers | skylink/mtls.py | :white_check_mark: |
| Transport | Certificate validation | X.509, CA-signed | scripts/generate_*.sh | :white_check_mark: |
| Network | Service isolation | Docker bridge network | docker-compose.yml | :white_check_mark: |
| Application | Authentication | JWT RS256 | skylink/auth.py | :white_check_mark: |
| Application | Authorization | RBAC (5 roles, 7 permissions) | skylink/rbac.py | :white_check_mark: |
| Application | Cross-validation | CN == JWT sub | skylink/mtls.py | :white_check_mark: |
| Application | Rate limiting | 60 req/min per identity | skylink/rate_limit.py | :white_check_mark: |
| Application | Input validation | Pydantic extra=forbid | skylink/models/ | :white_check_mark: |
| Application | Idempotency | Unique constraint | telemetry/ | :white_check_mark: |
| Application | Security headers | OWASP set | skylink/middlewares.py | :white_check_mark: |
| Data | PII minimization | GPS rounding (4 dec) | skylink/models/ | :white_check_mark: |
| Data | Token encryption | AES-256-GCM | contacts/encryption.py | :white_check_mark: |
| Data | No PII in logs | Structured logging | skylink/middlewares.py | :white_check_mark: |
| Container | Non-root user | UID 1000 | Dockerfile.* | :white_check_mark: |
| Supply Chain | Dependency scanning | pip-audit, Trivy | .github/workflows/ci.yml | :white_check_mark: |
| Supply Chain | Image signing | Cosign (keyless) | .github/workflows/ci.yml | :white_check_mark: |
| Supply Chain | SBOM | CycloneDX | .github/workflows/ci.yml | :white_check_mark: |
| Supply Chain | Secret detection | Gitleaks | .github/workflows/ci.yml | :white_check_mark: |

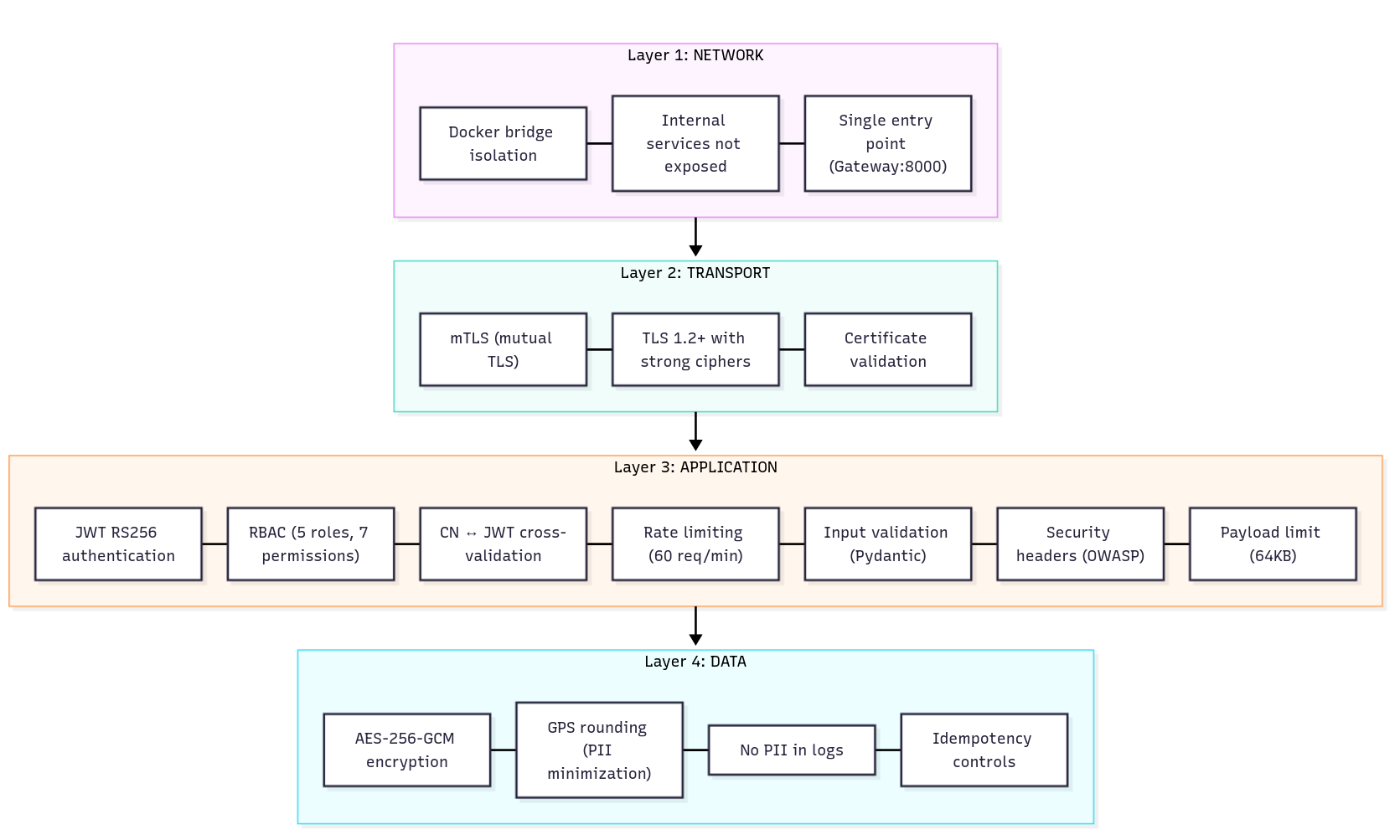

Defense in Depth Visualization¶
┌─────────────────────────────────────────────────────────────────────────┐
│ │
│ Layer 1: NETWORK │
│ ├── Docker bridge isolation │
│ ├── Internal services not exposed │
│ └── Single entry point (Gateway:8000) │
│ │
│ ┌───────────────────────────────────────────────────────────────────┐ │
│ │ │ │
│ │ Layer 2: TRANSPORT │ │
│ │ ├── mTLS (mutual TLS) │ │
│ │ ├── TLS 1.2+ with strong ciphers │ │
│ │ └── Certificate validation │ │
│ │ │ │
│ │ ┌───────────────────────────────────────────────────────────┐ │ │
│ │ │ │ │ │
│ │ │ Layer 3: APPLICATION │ │ │
│ │ │ ├── JWT RS256 authentication │ │ │
│ │ │ ├── RBAC (5 roles, 7 permissions) │ │ │
│ │ │ ├── CN ↔ JWT cross-validation │ │ │
│ │ │ ├── Rate limiting (60 req/min) │ │ │
│ │ │ ├── Input validation (Pydantic) │ │ │
│ │ │ ├── Security headers (OWASP) │ │ │
│ │ │ └── Payload limit (64KB) │ │ │
│ │ │ │ │ │
│ │ │ ┌───────────────────────────────────────────────────┐ │ │ │
│ │ │ │ │ │ │ │
│ │ │ │ Layer 4: DATA │ │ │ │
│ │ │ │ ├── AES-256-GCM encryption │ │ │ │
│ │ │ │ ├── GPS rounding (PII minimization) │ │ │ │
│ │ │ │ ├── No PII in logs │ │ │ │
│ │ │ │ └── Idempotency controls │ │ │ │
│ │ │ │ │ │ │ │
│ │ │ └───────────────────────────────────────────────────┘ │ │ │
│ │ │ │ │ │
│ │ └───────────────────────────────────────────────────────────┘ │ │
│ │ │ │
│ └───────────────────────────────────────────────────────────────────┘ │
│ │
└─────────────────────────────────────────────────────────────────────────┘Data Classification¶
Classification Matrix¶
| Data Type | Classification | At Rest | In Transit | In Logs | Retention |
|---|---|---|---|---|---|
| Aircraft UUID | Internal | Plaintext | TLS | Allowed | Unlimited |
| Telemetry (speed, alt) | Confidential | Plaintext | TLS | trace_id only | 90 days |
| GPS Position | PII | Rounded (4 dec) | TLS | Never | 90 days |
| Google Contacts | PII | Not stored | TLS | Never | Session only |
| OAuth Tokens | Restricted | AES-256-GCM | TLS | Never | Until revoked |
| JWT Tokens | Restricted | N/A (memory) | TLS | Never | 15 min |
| mTLS Certificates | Restricted | File (0600) | TLS | Never | 1 year |
| API Keys | Restricted | Env var | TLS | Never | Until rotated |
Data Handling Rules¶
┌─────────────────────────────────────────────────────────────────────────┐
│ DATA HANDLING RULES │
├─────────────────────────────────────────────────────────────────────────┤
│ │
│ INTERNAL DATA (Aircraft UUID, trace_id) │
│ ✓ Can be logged │
│ ✓ Can be stored plaintext │
│ ✓ Can be transmitted │
│ │
│ CONFIDENTIAL DATA (Telemetry) │
│ ✓ Can be stored │
│ ✗ Cannot be logged (only trace_id) │
│ ✓ Must be encrypted in transit (TLS) │
│ │
│ PII DATA (GPS, Contacts) │
│ ⚠ GPS must be rounded (4 decimals = ~11m accuracy) │
│ ⚠ Contacts are read-only, not persisted │
│ ✗ Never logged │
│ ✓ Must be encrypted in transit (TLS) │
│ │
│ RESTRICTED DATA (Tokens, Keys, Certs) │
│ ✓ Must be encrypted at rest (AES-256-GCM) │
│ ✓ Must be encrypted in transit (TLS) │
│ ✗ Never logged │
│ ✗ Never in source code │
│ ✓ Environment variables or secrets manager │
│ │
└─────────────────────────────────────────────────────────────────────────┘Attack Surface Analysis¶
Attack Surface Map¶
| Surface | Exposure | Risk Level | Attack Vectors | Mitigations |
|---|---|---|---|---|
| API Gateway :8000 | Internet | CRITICAL | DDoS, injection, auth bypass | mTLS, JWT, rate limit, validation |
| Internal Services | Docker network | MEDIUM | Lateral movement | Network isolation, no auth needed |
| PostgreSQL :5432 | Docker network | HIGH | SQL injection, data theft | Credentials, parameterized queries |
| Container Registry | Internet | HIGH | Image tampering | Cosign signing, Trivy scanning |
| CI/CD Pipeline | GitHub/GitLab | HIGH | Secret theft, code injection | Gitleaks, protected branches |
| External APIs | Outbound | MEDIUM | Data leakage | HTTPS, minimal data sharing |
Exposed Endpoints¶
| Endpoint | Authentication | Rate Limited | Input Validation | Risk |
|---|---|---|---|---|
GET /health | None | No | N/A | LOW |
GET /metrics | None | No | N/A | LOW |
POST /auth/token | mTLS | Yes | Pydantic | MEDIUM |
POST /telemetry/ingest | mTLS + JWT | Yes | Pydantic strict | HIGH |
GET /weather/current | JWT | Yes | Query params | MEDIUM |
GET /contacts/ | JWT | Yes | Query params | MEDIUM |
Cryptographic Inventory¶
Algorithms and Key Sizes¶
| Purpose | Algorithm | Key Size | Rotation Period | Storage |
|---|---|---|---|---|
| JWT Signing | RS256 (RSA-SHA256) | 2048-bit | 90 days | Env var (PRIVATE_KEY_PEM) |
| JWT Verification | RS256 | 2048-bit | 90 days | Env var (PUBLIC_KEY_PEM) |
| Token Encryption | AES-256-GCM | 256-bit | 90 days | Env var (ENCRYPTION_KEY) |
| mTLS CA | RSA/X.509 | 2048-bit | 1 year | File (certs/ca/ca.crt) |
| mTLS Server | RSA/X.509 | 2048-bit | 1 year | File (certs/server/) |
| mTLS Client | RSA/X.509 | 2048-bit | 1 year | File (certs/clients/) |
| Image Signing | ECDSA (Sigstore) | P-256 | Keyless (per-build) | GitHub OIDC |

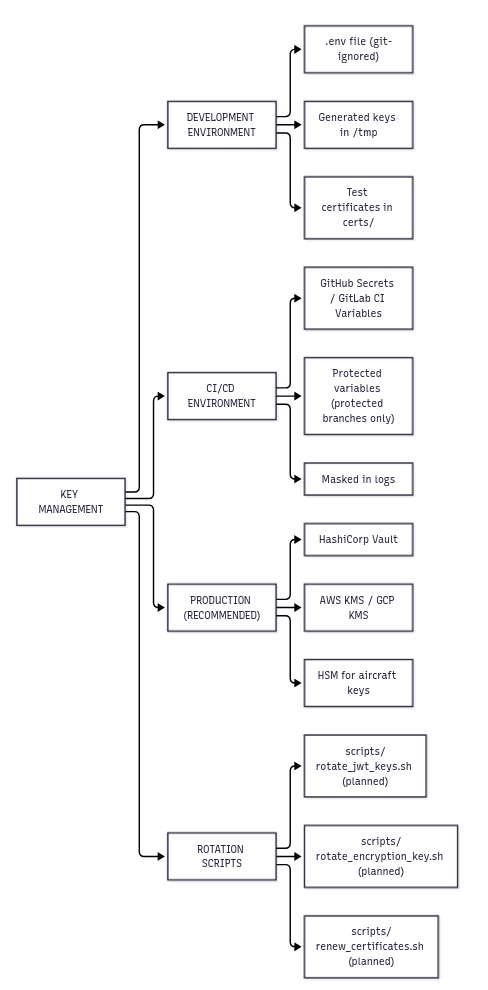

Key Management¶
┌─────────────────────────────────────────────────────────────────────────┐
│ KEY MANAGEMENT │
├─────────────────────────────────────────────────────────────────────────┤
│ │
│ DEVELOPMENT ENVIRONMENT │
│ ├── .env file (git-ignored) │
│ ├── Generated keys in /tmp │
│ └── Test certificates in certs/ │
│ │
│ CI/CD ENVIRONMENT │
│ ├── GitHub Secrets / GitLab CI Variables │
│ ├── Protected variables (protected branches only) │
│ └── Masked in logs │
│ │
│ PRODUCTION (RECOMMENDED) │
│ ├── HashiCorp Vault │
│ ├── AWS KMS / GCP KMS │
│ └── HSM for aircraft keys │
│ │
│ ROTATION SCRIPTS │
│ ├── scripts/rotate_jwt_keys.sh (planned) │
│ ├── scripts/rotate_encryption_key.sh (planned) │
│ └── scripts/renew_certificates.sh (planned) │
│ │
└─────────────────────────────────────────────────────────────────────────┘Network Security¶

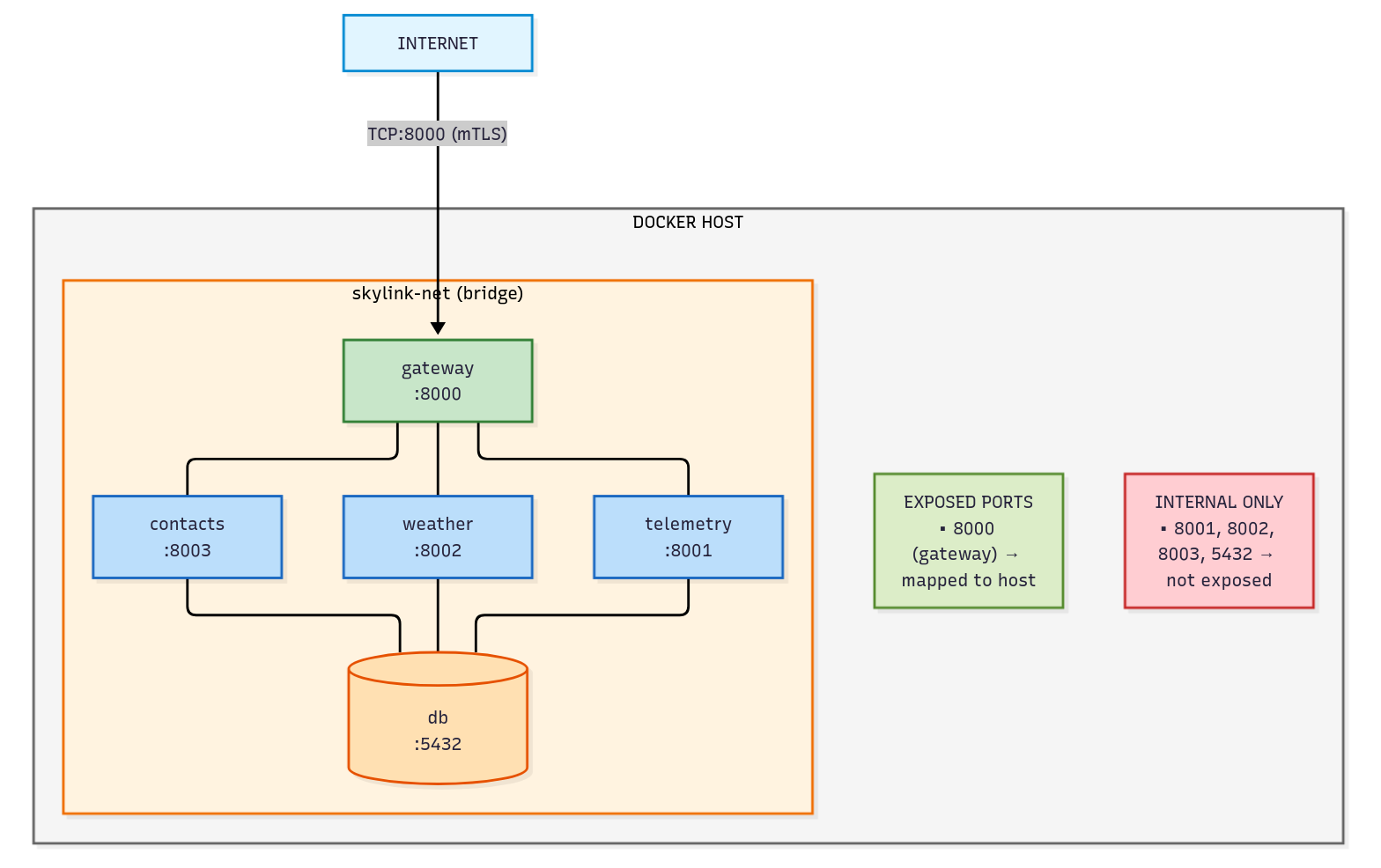

Network Topology¶
┌─────────────────────────────────────────────────────────────────────────┐
│ INTERNET │
│ │ │
│ │ TCP:8000 (mTLS) │
│ ▼ │
│ ┌───────────────────────────────────────────────────────────────────┐ │
│ │ DOCKER HOST │ │
│ │ │ │
│ │ ┌─────────────────────────────────────────────────────────────┐ │ │
│ │ │ skylink-net (bridge) │ │ │
│ │ │ │ │ │
│ │ │ ┌─────────┐ ┌─────────┐ ┌─────────┐ ┌─────────┐ │ │ │
│ │ │ │ gateway │ │telemetry│ │ weather │ │contacts │ │ │ │
│ │ │ │ :8000 │ │ :8001 │ │ :8002 │ │ :8003 │ │ │ │
│ │ │ └────┬────┘ └────┬────┘ └────┬────┘ └────┬────┘ │ │ │
│ │ │ │ │ │ │ │ │ │
│ │ │ └────────────┴────────────┴────────────┘ │ │ │
│ │ │ │ │ │ │
│ │ │ ┌────▼────┐ │ │ │
│ │ │ │ db │ │ │ │
│ │ │ │ :5432 │ │ │ │
│ │ │ └─────────┘ │ │ │
│ │ │ │ │ │
│ │ └─────────────────────────────────────────────────────────────┘ │ │
│ │ │ │
│ │ EXPOSED PORTS: │ │
│ │ • 8000 (gateway) → mapped to host │ │
│ │ │ │
│ │ INTERNAL ONLY: │ │
│ │ • 8001, 8002, 8003, 5432 → not exposed │ │
│ │ │ │
│ └───────────────────────────────────────────────────────────────────┘ │
│ │
└─────────────────────────────────────────────────────────────────────────┘Network Policies¶
| Service | Allowed Inbound | Allowed Outbound |
|---|---|---|
| gateway | Internet:8000 | telemetry, weather, contacts |
| telemetry | gateway | None |
| weather | gateway | WeatherAPI (HTTPS) |
| contacts | gateway | Google APIs (HTTPS), db:5432 |
| db | contacts | None |
Kubernetes Network Policies¶
For production Kubernetes deployments, network policies enforce zero-trust networking:
# Default: deny all traffic
apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
name: skylink-default-deny
spec:
podSelector: {}
policyTypes:
- Ingress
- EgressKubernetes Network Policy Matrix:
| Policy | From | To | Ports | Purpose |
|---|---|---|---|---|
gateway-ingress | ingress-nginx | gateway | 8000 | External access |
gateway-egress | gateway | internal services | 8001-8003 | Service routing |
internal-ingress | gateway | telemetry/weather/contacts | 8001-8003 | Internal traffic |
internal-egress | internal services | external APIs | 443 | API calls |
prometheus-scrape | monitoring namespace | all pods | 8000-8003 | Metrics collection |
See KUBERNETES.md for full network policy configuration.
Security Headers¶
X-Content-Type-Options: nosniff
X-Frame-Options: DENY
Cache-Control: no-store, no-cache, must-revalidate, max-age=0
Cross-Origin-Opener-Policy: same-origin
Cross-Origin-Embedder-Policy: require-corp
Referrer-Policy: no-referrer
Permissions-Policy: geolocation=(), microphone=(), camera=()JWT Claims¶
{
"sub": "aircraft_id (from mTLS CN)",
"aud": "skylink",
"iat": 1734600000,
"exp": 1734600900,
"role": "aircraft_standard"
}RBAC Roles¶
| Role | Description | Key Permissions |
|---|---|---|
aircraft_standard | Default aircraft | weather:read, telemetry:write |
aircraft_premium | Premium aircraft | + contacts:read |
ground_control | Ground control | weather:read, contacts:read, telemetry:read |
maintenance | Maintenance | telemetry:read/write, config:read |
admin | Administrator | All permissions |
Rate Limits¶
| Scope | Limit | Window |
|---|---|---|
| Per aircraft_id | 60 requests | 1 minute |
| Global | 10 requests | 1 second |
